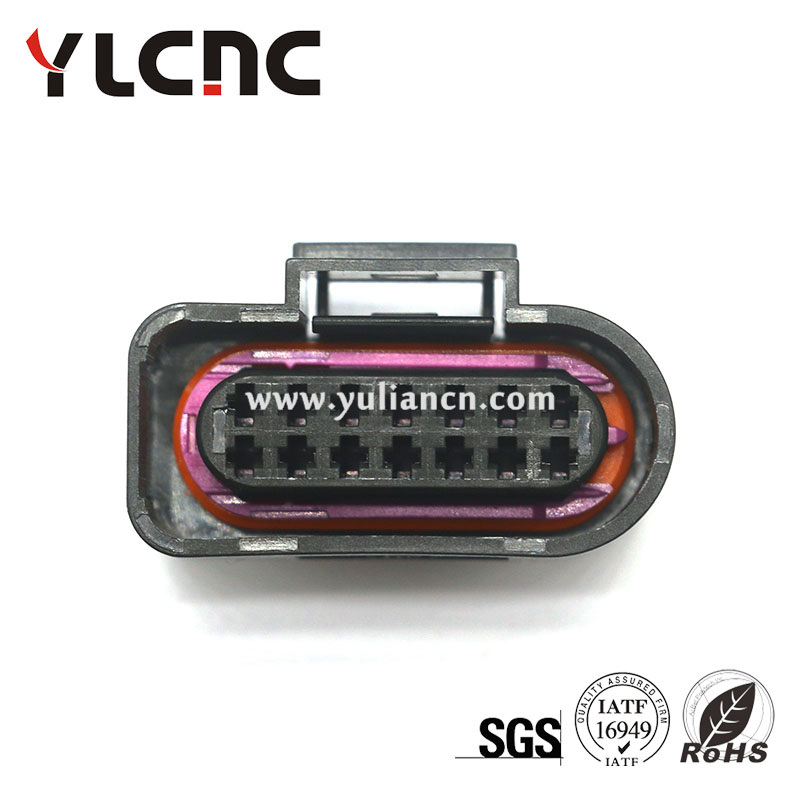

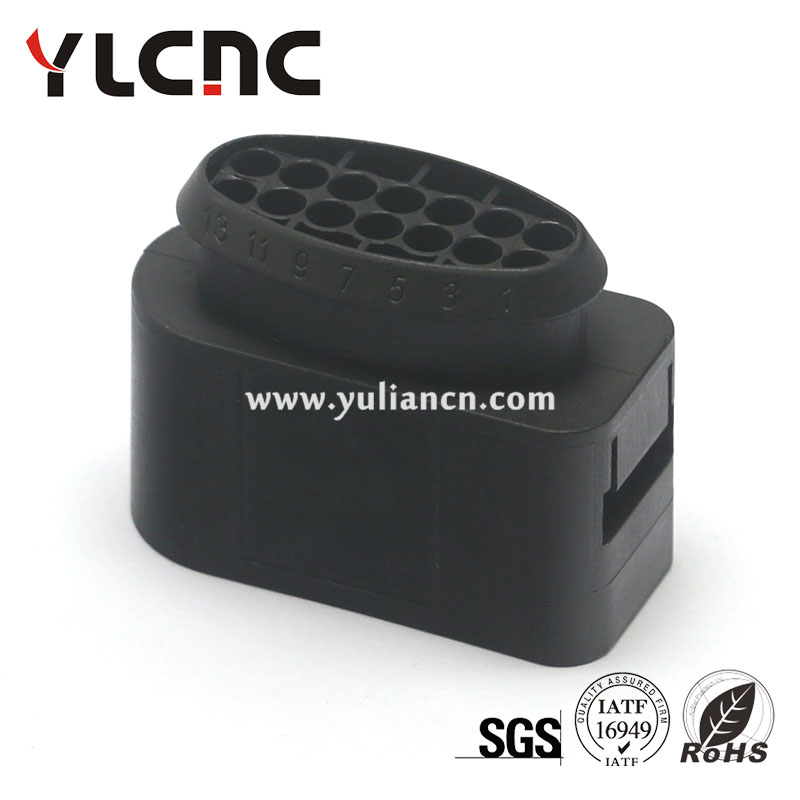

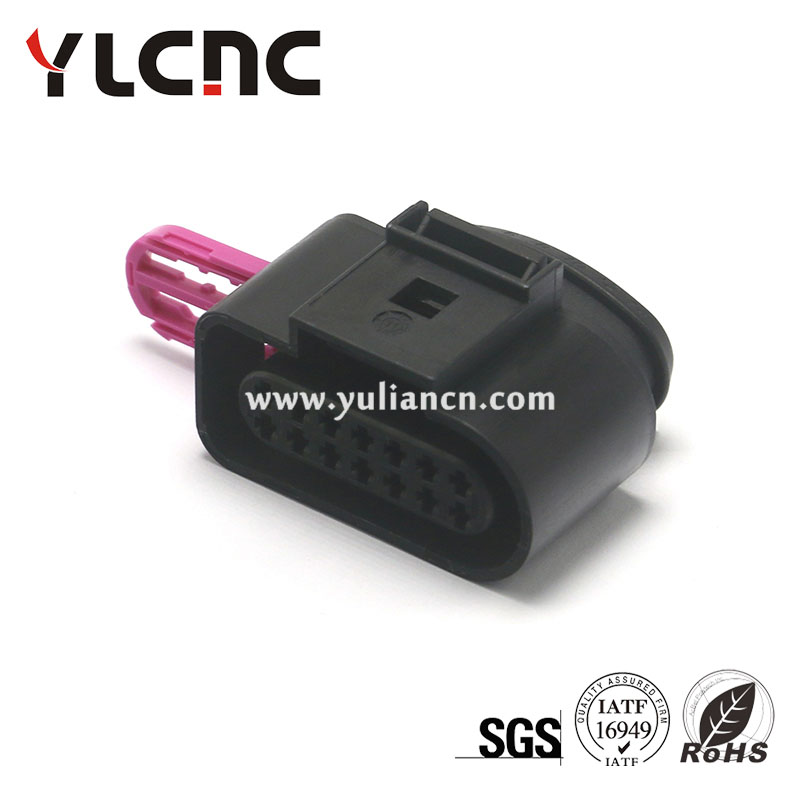

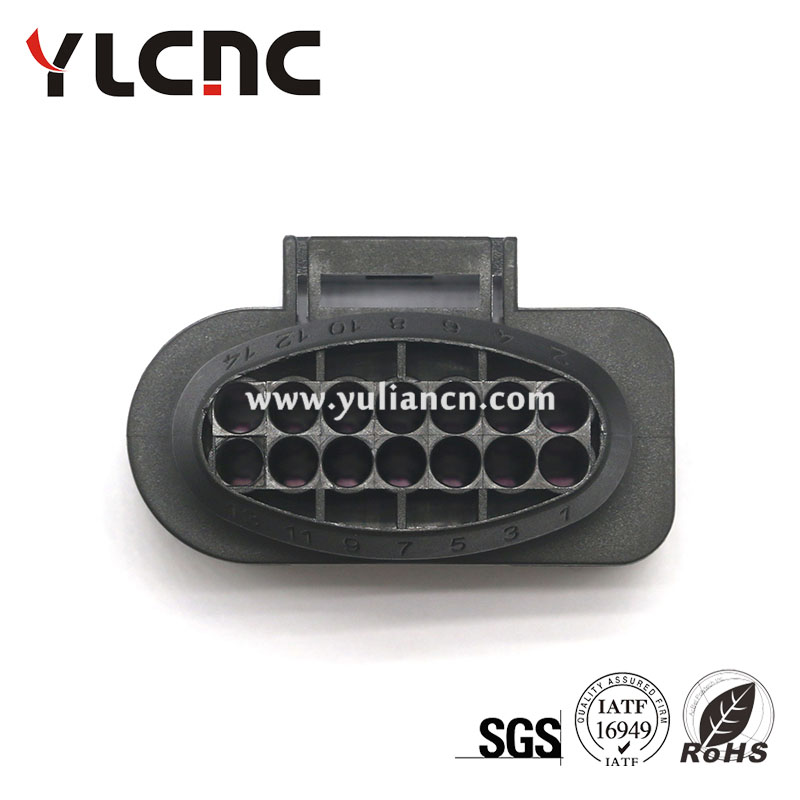

1.5系列 / DJ7145A-1.5-21
Product Description
| Connector Style | Housing For Male Terminals |
| Sealed | Yes |
| Hybrid Connector | No |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-To-Wire |
| Number Of Positions | 14 |
| Vominal Voltage Architecture?(V) | 12 (Reference Value) |
| Operating Voltage?(VDC) | 12 (Reference Value) |
| Insulation Resistance | 100MΩ Min. |
| Cable Exit Angle | 180° |
| Body Material | PBT+GF PA66 PA66+GF |
| Color | Black |
| Mating Tab Width | 1.2mm |
| Operating Temperature Range | 150°C-200°C |
| Packaging Quantity | 50pcs/100pcs/300pcs/500pcs/1000pcs Per Bag With Label,Carton |
| Size | Standard Size |
| R&D Ability | Open New Molds According To Your Samples Or Drawings,We Can Supply Wiring Harness Products Also.OEM And ODM Are Available |
| Delivery Time | Enough Stock And Strong Production Capacity Ensure Timely Delivery |
| Company Type | Factory |
Application
More Product
CLICK HERE CLICK HERE CLICK HERE
CLICK HERE CLICK HERE CLICK HERE
Packaging & Shipping
FAQ
1.Q:Are You A Manufacturer Or Trading Company?
A:We Are A Manufacturer With Professional R&D Team, And Providing OEM & ODM Services.
A:We Are A Manufacturer With Professional R&D Team, And Providing OEM & ODM Services.
2.Q:Could I Put My Own Logo On It?
A:Sure,Customers'Logo Can Be Printed Or Put On The Items.
A:Sure,Customers'Logo Can Be Printed Or Put On The Items.
3.Q:How About The Certificates?
A:ISO9001, RoHS,CE Etc.
4.Q:Could I Buy 1pc Sample First And Small Order?
A:Of Course,Support Sample Order And Small Order,Especially For New Customers Under Certain Condition.
5.Q:How Much For 1pc Sample?
A:Based On What Kind Of Sample The Client Need.
6.Q:How Long To Make A Sample?
A:Normally Within One Week.
7.Q: Do You Have A Catalogue ? Can You Send Me The Catalogue To Have A Check Of All Your Products ?
A: Yes ,We Have Product Catalogue . Please Contact Us On Line Or Send An Email .
8.Q: How Do You Make Our Business Long-Term And Good Relationship?
A1: We Keep Good Quality And Competitive Price To Ensure Our Customers Benefit .
A2: We Respect Every Customer As Our Friend And We Sincerely Do Business And Make Friends With Them, No Matter Where They Come From.
